Z530 - Zirconia Oxygen Sensor for OEM applications

  • Auto-ranging 0.01 ppm to 100% O2
  • Fast response remote zirconia sensor
  • RS 232 and 4 to 20 mA outputs
  • Lab view based interface software
  • 24 V dc supply

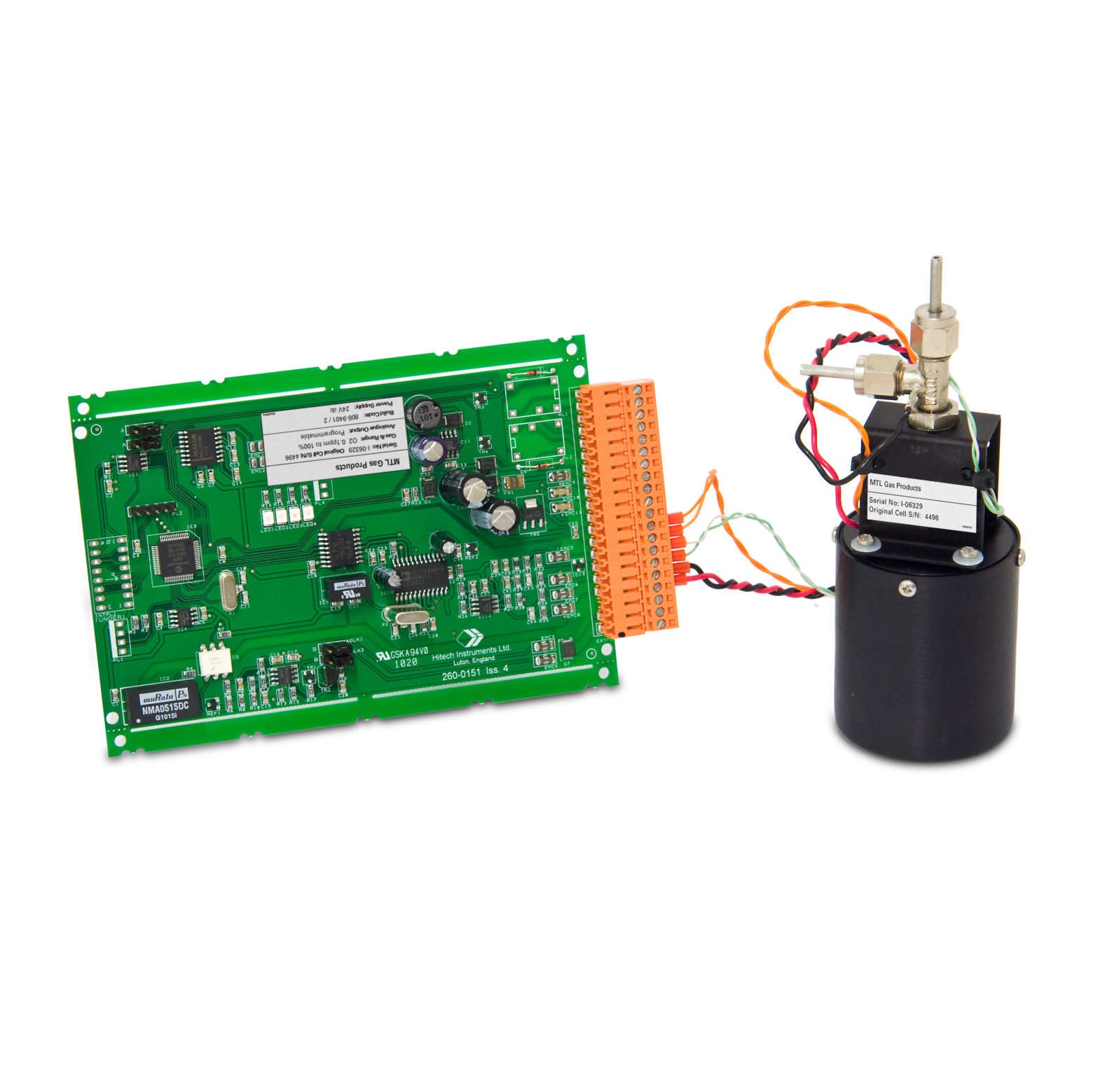

The Z530 is a ‘blind’ (no display) OEM oxygen analyser comprising micro-processor based electronics mounted on a single printed circuit board, and a separate zirconia oxygen sensor, complete with its associated heater. Both parts are supplied loose to enable the maximum flexibility in mounting configuration options for the OEM or system integrator.


  • Flow soldering
  • Gas mixers
  • Nitrogen generators
  • Inert gas systems
  • Air separation
  • Reflow ovens
  • Glove Boxes
  • Insulated glass (IG) filling

For Product certificates <click here>

Product Code Description Downloads

intrinsically safe logo Symbol denotes that the equipment is suitable for use in hazardous area applications.
fsm logo Symbol denotes that the product has been assessed for functional safety applications

INM 130-0193   Z530 Manual
