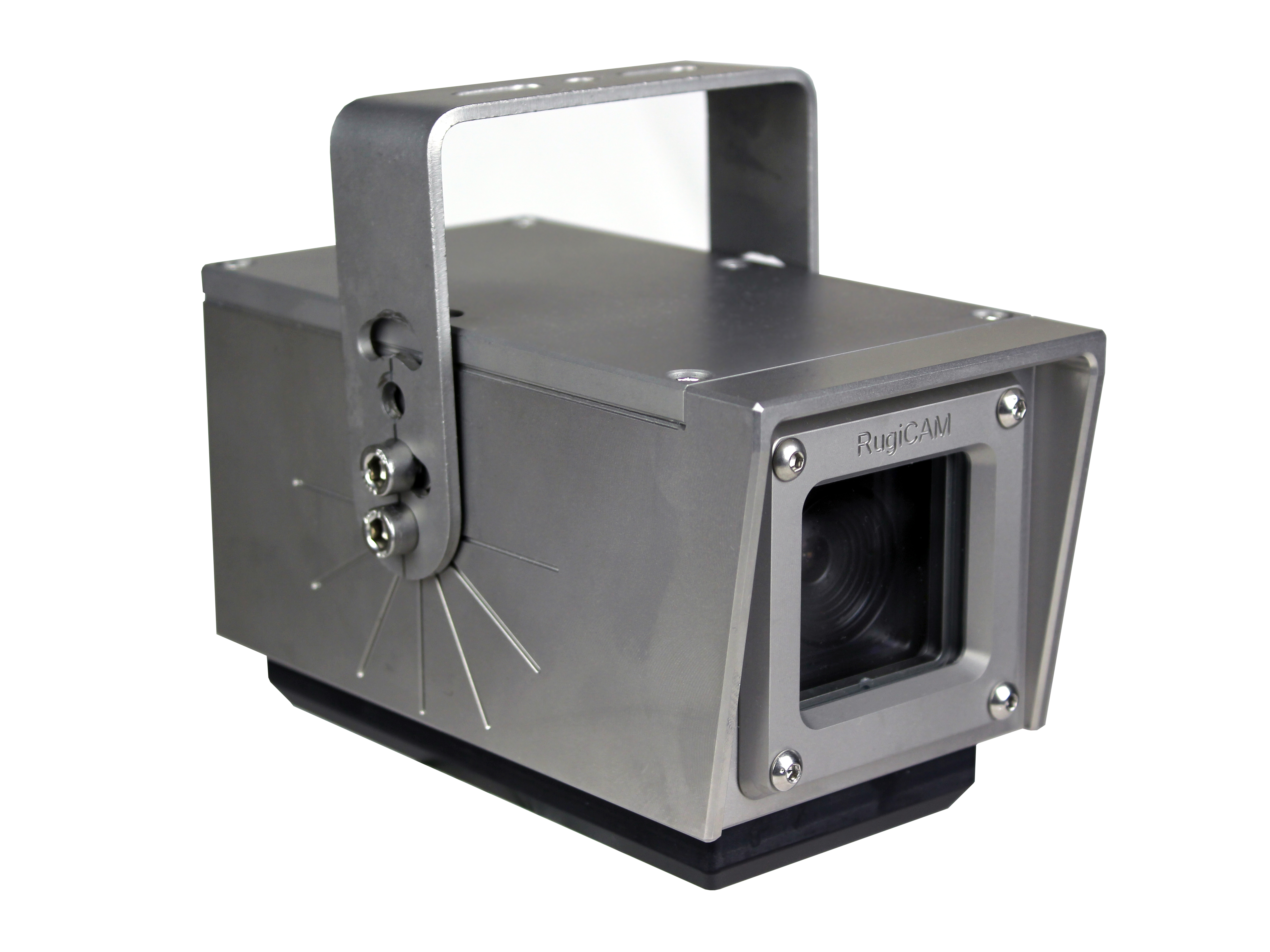

MTL RugiCAM-IP

MTL RugiCAM-IP high definition (HD) IS Ethernet network camera enable plant managers across process industries worldwide to ensure they are operating safely in hazardous zone 1 and zone 2 areas.

The first of its kind for the hazardous area market, the MTL RugiCAM-IP camera monitors and provides enhanced visual safety to control and automation systems installed on site, and provides additional security and visibility to specific hazardous locations in plants so safe operation can be maintained.

It is lightweight, connecting directly to compatible IS Ethernet systems up to 100 metres via a Cat5e cable or WiFi, and it allows for quick and easy maintenance, therefore enabling plants to save time and associated costs.

  • Rugged case with 6mm toughened glass for harsh environments
  • IS approval allows for safe, live network maintenance
  • HD resolution of 1080P and enhanced image analysis
  • Supports live video streaming via a H.264 compressed video format and Motion JPEG with user-selectable frame rates
  • Micro-SD card slot that can be used as an optional back-up
  • Available with an optional Infra-Red (IR) or white LED lights unit that enhances the camera’s low light capabilities.

To download a copy of the MTL RugiCAM-IP brochure <click here>.

For power supply options <click here>.

For Quick Start Guide <click here>.

Product Code Description Downloads

intrinsically safe logo Symbol denotes that the equipment is suitable for use in hazardous area applications.
fsm logo Symbol denotes that the product has been assessed for functional safety applications

9459-ET-XX   French version - MTL RugiCAM-IP HD network camera Datasheet
9459-ET-XX   MTL RugiCAM-IP HD network camera Datasheet  Manual  File
