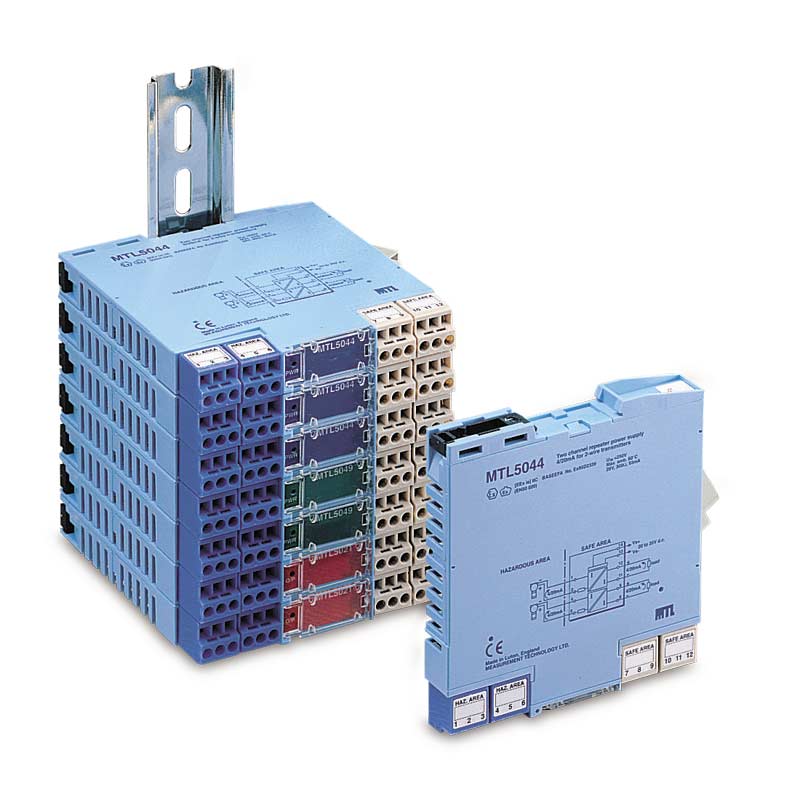

MTL5000 range

Please note that this product has been discontinued. The information contained on this page is for reference use only.

For more information on migrating or equivalent product options click here
For more information on our current products click here

Please note that the MTL5000 range has been terminated. The following modules; MTL5018ac, MTL5314, MTL5051 & MTL5053 will be retained until further notice and their supporting information can now be found in the MTL5500 range. All other products within the MTL5000 range have been superseded by their equivalent (see migration table) in the MTL5500 range. For new applications the MTL5500 modules are recommended, these offer all the benefits of greater efficiency, new multichannel modules and new functionality. See selection guide.

Product Termination Notice - Last time buy
Statement issued Last Time Buy
Replacements and notes
7 February 2011 31st December 2015  MTL5500
range

A number of the products in the MTL5000 range will continue to provide key functionality as part of our DIN rail isolator range.

For customers wishing to migrate to the MTL5500 range, a comprehensive list of module comparisons has been produced to assist the process. You can download our migration guide or click here to direct to our on-line product migration support page.


For product certificates <click here>

Product Code Description Downloads

intrinsically safe logo Symbol denotes that the equipment is suitable for use in hazardous area applications.
fsm logo Symbol denotes that the product has been assessed for functional safety applications

1. Intro
INM5000  MTL5000 Series Instruction Manual Manual
MTL5000  MTL5000 Series Cable Parameters Datasheet
MTL5000  MTL5000 Series Common Specifications Datasheet
MTL5000  MTL5000 Series Enclosures & Accessories Datasheet
2. Analogue Input
MTL5040  Loop isolator Datasheet
MTL5041  Repeater power supply Datasheet
MTL5042  Repeater power supply Datasheet
MTL5043  Repeater power supply Datasheet
MTL5044  Repeater power supply Datasheet
3. Analogue Output
MTL5045  Isolating driver Datasheet
MTL5046  Isolating driver Datasheet
MTL5049  Isolating driver Datasheet
4. Digital Input
MTL5011B  Switch/proximity detector interface Datasheet
MTL5012  Switch/proximity detector interface Datasheet
MTL5012S  Switch/proximity detector interface - United Electric series Datasheet
MTL5014  Switch/proximity detector interface Datasheet
MTL5015  Switch/proximity detector interface Datasheet
MTL5017  Switch/proximity detector interface Datasheet
MTL5018  Switch/proximity detector interface Datasheet
MTL5113P  Failsafe switch/proximity detector interface Datasheet
5. Digital Output
MTL5021  Solenoid/alarm driver Datasheet
MTL5022  Solenoid/alarm driver Datasheet
MTL5023  Solenoid/alarm driver Datasheet
MTL5024  Solenoid/alarm driver Datasheet
MTL5025  Solenoid/alarm driver Datasheet
6. Temperature Input
MTL5074  Temperature converter Datasheet
MTL5081  Millivolt/thermocouple isolator Datasheet
MTL5082  Resistance isolator Datasheet
7. General
MTL5031  Vibration transducer interface Datasheet
MTL5032  Pulse isolator Datasheet
MTL5061  Fire/smoke detector interface Datasheet
MTL5099  Dummy isolator Datasheet
MTL5344  Repeater power supply Datasheet
MTL5349  Isolating Driver Datasheet
MTL5991  24V dc power supply Datasheet
