Classic Single-Segment Power Supplies

Product Termination Notice and Last Time Buy
Statement issued Last Time Buy Replacements and notes
14th December 2015 30th June 2016 MTL F10x Series

The MTL5995-PS, FPS-DT and FPS-D have now been superseded by the MTL F10x Series of single-segment fieldbus power supplies. For new applications, the MTL F10x  Series is recommended, this offers benefits of simpler installation and superior functionality.

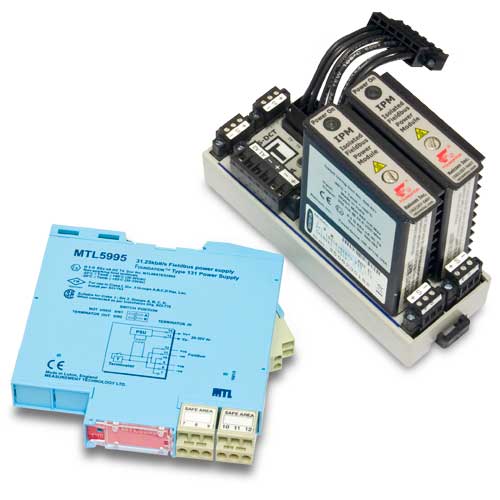

The MTL5995-PS isolated fieldbus power supply is a compact, DIN-rail mounting unit providing plug in connectors to simplify installation and maintenance.

The FPS-DT or the FPS-D dual fieldbus power supply powers two independent fieldbus segments. They consist of a Dual Coupler base and two plug-in Isolated Power Modules. The function of the Dual Coupler Base is to:

  • Bring in two sources of input 24 VDC power
  • Provide the mechanical mounting and the electrical connection for two Isolated Power Modules
  • Provide network cable connection to the Host and to the network’s field segment for each fieldbus segment
  • Monitor the power supply and segment operation and generate an alarm in case of failure

Two Isolated Power Modules, or IPMs, plug into the base. Each provides galvanically isolated, fieldbus-conditioned power to its fieldbus segment. Each IPM can provide up to 350 mA at a minimum of 25 V dc of power.

For a copy of the fieldbus SmartPlant Instrumentation (SPI) library <click here>

For product certificates <click here>

Product Code Description Downloads

intrinsically safe logo Symbol denotes that the equipment is suitable for use in hazardous area applications.
fsm logo Symbol denotes that the product has been assessed for functional safety applications

FPS-D_DT   Fieldbus Isolated Dual Power Supplies Datasheet  Manual
MTL5995   Fieldbus power supply Datasheet
