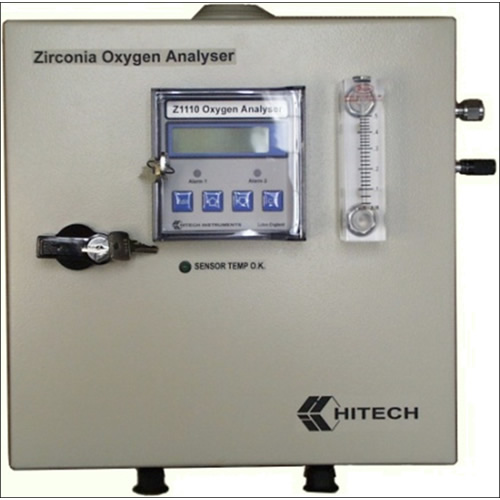

Z1110 - Rapid Response Zirconia Oxygen Analyzer (Wall Mount)

Please note that this product has been discontinued. The information contained on this page is for reference use only.

For more information on migrating or equivalent product options click here
For more information on our current products click here

  • Measures from 100% to less than 1ppm
  • Rapid response time of less than 5s for 90% change
  • Auto ranging display
  • Fully programmable analogue output
  • Low cost with proven sensor technology

The Z1110 rapid response zirconia oxygen analyser is fully auto ranging from percentage levels to a fractions of parts per million (ppm) in clean gases. Packaged on a 19" rack mounting enclosure, it uses a long life zirconia oxygen sensor to provide accurate measurement with minimal interference from other gases. The unique cell and heater design gives very fast warm-up times, rapid response times of less than 5s for 90% change. A wide choice of sampling options is provided to produce virtually 'custom-built' systems.



A large multi-digit autoranging LCD is used to display measured concentrations and the user adjustable parameters in configuration mode.

Two alarm channels each provide one set of volt-free changeover contacts. They can be user-configured to any concentration within the span of the instrument, as well as function (high, low or off) and hysteresis. A choice of two analogue outputs is available, 0 to 5V or 4 to 20mA, fully programmable.

The standard sampling system comprises a metering valve and flowmeter. Standard alternatives are available to cover a wide variety of applications. Hitech also supply a range of sample conditioning accessories to cater for most sample sources.

Product Code Description Downloads

intrinsically safe logo Symbol denotes that the equipment is suitable for use in hazardous area applications.
fsm logo Symbol denotes that the product has been assessed for functional safety applications

Z1110  Z1110 Datasheet
