Wireless Accessories

When deploying a wireless network often more thought is given to the device types than the antennas, cabling and connections. These wireless accessories can determine the successful operation of a system as they often have a large impact on signal strengths, distances and bandwidths that are achievable. We offer a high quality range of antennas, cabling and surge equipment to support these wireless systems, ensuring that the signal is available when and where it is needed. We also provide advice on selecting a system and appropriate antennas / cabling. Contact enquiry@mtl-inst.com to discuss a solution or make a recommendation on antennas and cabling. Our trained technical personnel will be happy to help.

Product Code Description Downloads

intrinsically safe logo Symbol denotes that the equipment is suitable for use in hazardous area applications.
fsm logo Symbol denotes that the product has been assessed for functional safety applications

1. Antennas - 800 & 900 MHz
ANTCFD890EL  Dipole with 15’ RG58/SMA connector
ANTDG900-1  Whip with 3’ RG174/SMA connector, angle bracket -2dB gain,  7” long

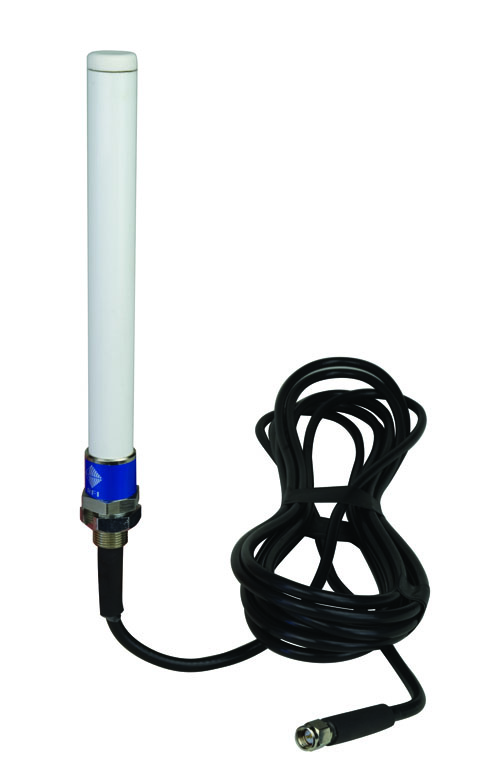

ANTSG900-6  Colinear with N-type connector,  8dB gain,  54” long
ANTSG900EL  Colinear with N-type connector,  5dB gain,  32"long
ANTWH900-SMA  Demo whip antenna, 4” SMA connector
ANTYU16-900  16 element Yagi antenna with N-type connector 15dB gain
ANTYU6-900  6 element Yagi antenna with N-type connector 10dB Gain
2. Antennas - 2.4 GHz
ANTMD2400-EL  Dipole with 15’ Cellfoil/SMA connector,  and mounting bracket,  0dB gain,  9” long
ANTSG2400EL  Colinear with N-type connector,  5dB gain, 20"long with mounting bracket
ANTY2400-18EL  Directional radome Yagi,  N-type connector,  18dB gain
ANTZ2400EL  Colinear with N-type connector,  8dB gain,  34” long with mounting bracket
