P861 - Intrinsically Safe LED Lamp

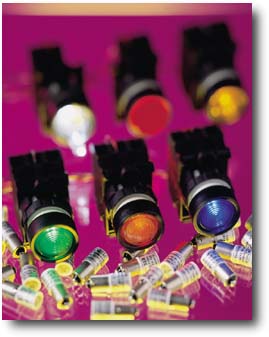

The P861 LED Lamp provides visual on/off indication of process conditions in both safe and hazardous areas. Available in a choice of six super-bright colours (red, orange, yellow, green, blue and white), they are ideally suited as part of a panel mounting indicator or illuminated pushbutton assembly.

The P861 itself is a standard BA9s intrinsically safe LED lamp which can be supplied as part of a pilot light or illuminated pushbutton or alternatively supplied separately to be used in any standard switch or lamp assembly.

With the LED lamp being current limited to take a maximum of only 20 mA, it is possible to drive two lamps from a single IIC interface without any affect on the brightness.

With the LED's low power consumption, low heat dissipation and long life expectancy, the P861 is an ideal indicator for safe and hazardous areas alike.

Product Code Description Downloads

intrinsically safe logo Symbol denotes that the equipment is suitable for use in hazardous area applications.
fsm logo Symbol denotes that the product has been assessed for functional safety applications

P861   P861 - Intrinsically Safe LED Lamp Datasheet  Manual
