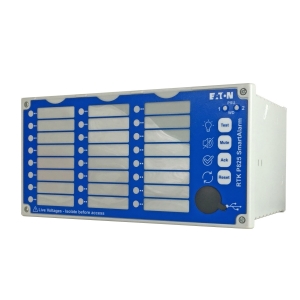

NEW SmartAlarm Annunciator

The new SmartAlarm Annunciator brings together many years of experience in Alarm Annunciator design, combined with new technology to offer you a compact, but advanced alarm monitoring system. The SmartAlarm comes in three package sizes that offer’s one of the industry’s lowest operating power profiles for a similar device. Using the latest in componentry our unique design offers flexibility in parameter configuration and low cost of ownership.

The main features of this unit include: -



  • Compact DIN Box design to provide alarm visualisation in almost any panel.
  • Five LED colours – Front accessible LED’s provide alarm discrimination by colour
  • Front Panel USB programming port allows access to change any parameter behind an IP54 rated plug.
  • Integral power supply, Universal supply for direct connection to either 18-58VDC or 85-265VAC (88-360VDC)
  • Comprehensive diagnostics, warning LEDs and common relays are used to provide indication of any problems with the alarm system
  • Flexible relays, Four output relays can be used and configured as group relays, audible relays or diagnostic relays
  • Each system is supplied with 4 Mappable pushbuttons and Internal Audible to cover almost all alarm applications



Product Code Description Downloads

intrinsically safe logo Symbol denotes that the equipment is suitable for use in hazardous area applications.
fsm logo Symbol denotes that the product has been assessed for functional safety applications

SmartAlarm  SmartAlarm Annunciator Datasheet  Manual  Technical Document
SmartAlarm software  SmartAlarm configurator version 1.0.1.1 File
