MTL8000 1/1 Power Supplies

Please note that this product has been discontinued. The information contained on this page is for reference use only.

For more information on migrating or equivalent product options click here
For more information on our current products click here

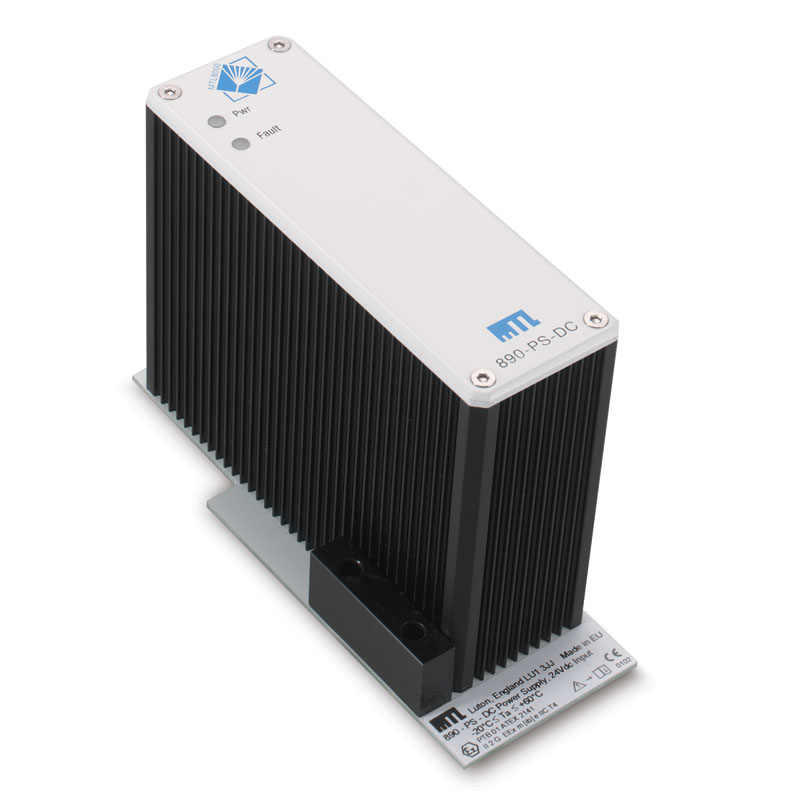

The Power supply modules convert locally available 24Vdc to a high-frequency bus that in turn powers the I/O modules and their field circuits.

The power supplies are compact, lightweight and efficient and mount directly onto the Node Services Carrier. Supply redundancy is supported by adding a second unit. Power supplies may be changed while energised in the hazardous area.

Each power supply is used with an additional filter unit which protects against damage from incoming noise on the 24V supply. The filters are certified for installation in Zone 1 and are fitted inside the field enclosure.

For product certificates <click here>

Product Code Description Downloads

intrinsically safe logo Symbol denotes that the equipment is suitable for use in hazardous area applications.
fsm logo Symbol denotes that the product has been assessed for functional safety applications

891-PS-DC   1/1 Power Supply Datasheet
895-FL-PS   1/1 power conditioner Datasheet
