MTL8000 1/1 Node Services Carrier

Please note that this product has been discontinued. The information contained on this page is for reference use only.

For more information on migrating or equivalent product options click here
For more information on our current products click here

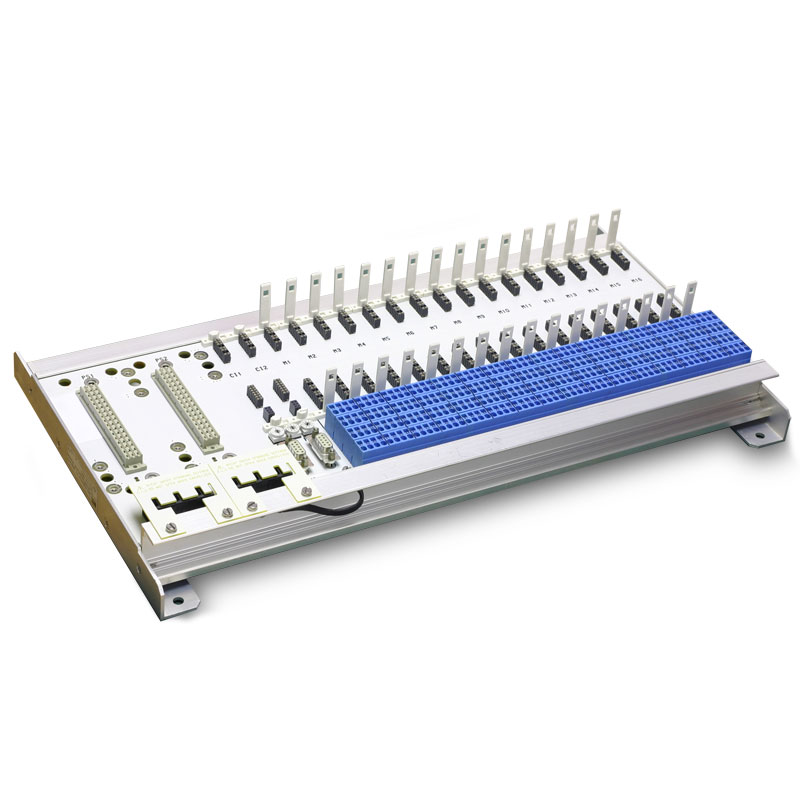

The Node Services Carrier accommodates primary and redundant power supplies, primary and redundant BIMs and up to 16 I/O modules, providing up to 128 DI channels or 64 AI/TI/AO/DO channels per node.

The carrier is supported by a strong, lightweight extruded aluminium platform, which provides excellent mechanical stability and ruggedness.

An environmentally hardened, stainless steel field enclosure is available to accommodate the 16-module Node Services Carrier. The enclosure is certified EEx e (increased safety) in order to provide the required level of protection for the power supply input terminals on the carrier, which are certified as EEx e components.

For product certificates <click here>

Product Code Description Downloads

intrinsically safe logo Symbol denotes that the equipment is suitable for use in hazardous area applications.
fsm logo Symbol denotes that the product has been assessed for functional safety applications

870-CA-16  Node Services Carrier, 16-module Datasheet
