MAPtest 3050 - Modified Atmosphere Food Gas Analyser (Bench Top)

Please note that this product has been discontinued. The information contained on this page is for reference use only.

For more information on migrating or equivalent product options click here
For more information on our current products click here



A leading manufacturer of modified atmosphere packaging tester company:

  • Modified atmosphere packaging tester
  • For monitoring modified atmosphere packaging
  • Analyzer of gas ratio for modified atmosphere packaging
  • Used in modified atmosphere sterilized packaging
  • Excellent return on investment for modified atmosphere packaging
  • Auto calibration
  • Very fast and easy to use
  • Pumped or syringe-injection gas sampling
  • Multiple pass/fail programmable limit sets
  • 1000 results storage with optional download software

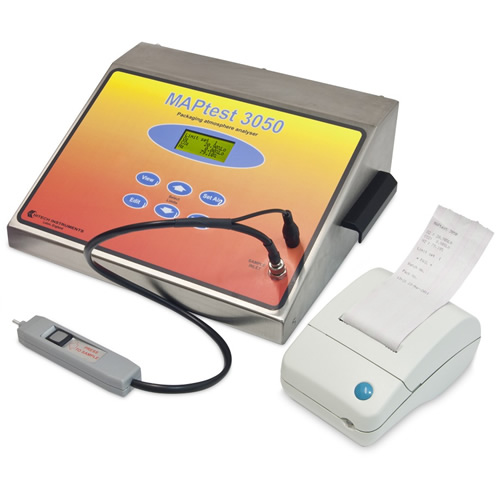

The MAPtest 3050 is one of the most advanced modified atmosphere packaging analysers of its type. Controlled by a microprocessor and housed in a stainless steel bench-top enclosure, it is designed to be used by all types of personnel.



Operation is simplicity itself. Ease of use and neatness of operation were two of the key design requirements. Equally at home in the research lab and the shop floor, no exceptional skills are required to operate the instrument and precision results can be flawlessly produced by everyone.



Advanced sensors measure the carbon dioxide and oxygen content of the sample. Their outputs are analysed by the microprocessor, which displays the results within five seconds.



Auto calibration is achieved by use of highly stable sensors. The initial calibration is performed after warmup, with subsequent ones automatically activated at appropriate intervals. The automatic calibration process can be manually activated (no calibration gases are required).



An illuminated four-line graphical display is used to show the results. Oxygen, carbon dioxide and nitrogen balance are shown as percentage concentrations, along with pass/fail messages if the limit sets are activated. Oxygen results below 10% are resolved to a precision of 0.01%, enabling very exact measurements of residual oxygen.



Four sets of limits, that are user programmed, are provided to detect a pass/fail result of the analysis. Each set may be easily selected as required.



1000 results can be stored (concentrations, time, date) and downloaded to a personal computer using optional software. The data can be read by all leading spreadsheet packages for analysis, printing etc.



A fast external printer is available as an option to provide a timed and dated hard-copy of the analysis. Both printing and storage functions may be switched on and off by the operator.



Two sampling methods are provided, pumped or syringe. Firstly, the built-in pump can be used to withdraw a sample from a pack using the sample probe supplied. The probe is suitable for single-handed operation, and the pump can be programmed to withdraw volumes of 5ml to 90ml. Alternatively, a manual syringe can be used to inject a sample through a septum port. When using this method the sample flow is automatically detected and the analysis automatically produced 5 seconds after the end of the sample delivery.



A comprehensive set of sampling accessories and consumables is also provided.



Product Code Description Downloads

intrinsically safe logo Symbol denotes that the equipment is suitable for use in hazardous area applications.
fsm logo Symbol denotes that the product has been assessed for functional safety applications

MAPtest 3050  MAPtest 3050 Datasheet  File
