DFR30IS Intrinsically Safe Display Facia

Please note that this product has been discontinued. The information contained on this page is for reference use only.

For more information on migrating or equivalent product options click here
For more information on our current products click here

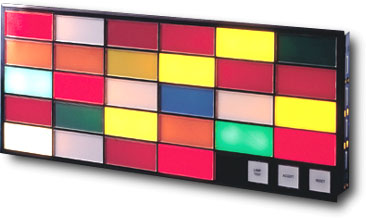

The DFR30IS Intrinsically Safe Display Facia is a backlit LED illuminated display approved for use in zone 1 and zone 2 hazardous areas and has been ATEX certified to EN50014:1997 and EN50020:2002, Group II, Category 2G, EEx ia IIC T4. This product is often combined with RTK Instruments’ range of Alarm Annunciators and certified Interfaces to provide a complete Alarm Management System with displays in both safe and hazardous areas.

Three window sizes are available (30 x 30mm, 60 x 30mm and 60 x 60mm) in a choice of six colours. As the DFR30IS Display Facia is modular in design, displays can be created in almost any format, arrangement and size enabling the user to have exactly the configuration needed for a specific application. The unit can be supplied complete with film legends to a customer’s requirement or RTK can supply a template to allow users to create their own legends locally.

As the DFR30IS is often used for alarm indication, pushbuttons can be included within the display itself to acknowledge and reset alarms. These are normally fitted in the bottom right-hand cell.

Product Code Description Downloads
DFR30IS   DFR30IS Intrinsically Safe Display Facia Datasheet  Manual
