HART Customised Solutions

Please note that this product has been discontinued. The information contained on this page is for reference use only.

For more information on migrating or equivalent product options click here
For more information on our current products click here

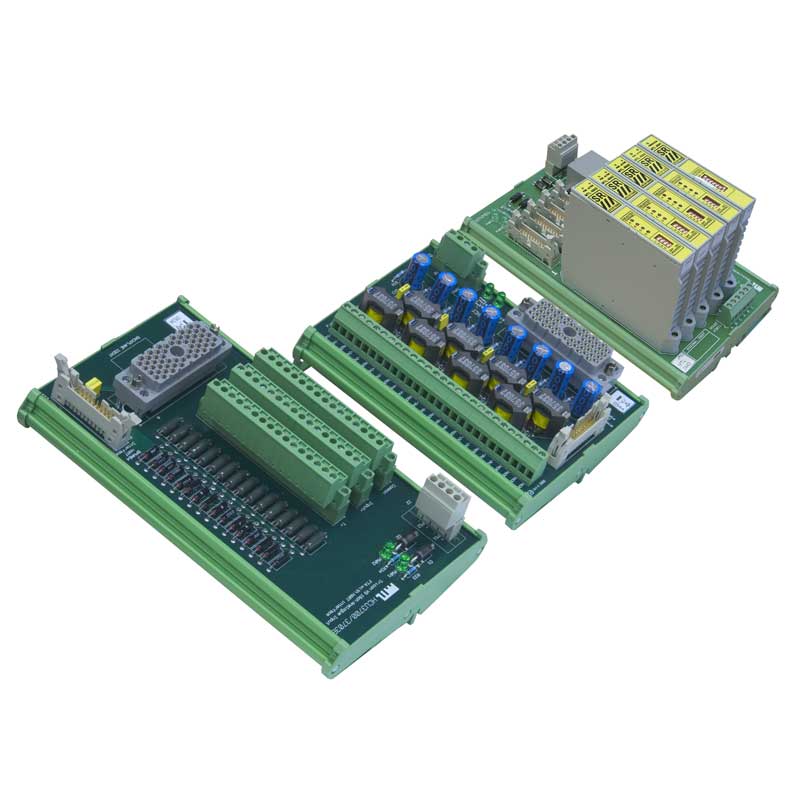

One of the simplest and most cost effective methods of integrating HART CONNECTIONS into a traditional point to point Process I/O solution is to install a customised HART connection board in place of the normal DCS Field Termination Panel.MTL manufacture a wide range of customised backplanes and HART connection units to replace the standard DCS termination boards and provide direct pickup of the HART signal.The MTL HART connection units have all the features of the standard DCS termination board with the addition of the HART multiway connector which links the board to the HART backplane. Additional features can be added as required.
•    Channel to channel isolation
•    Customised field and system connectors
•    HART signal conditioning
•    HART filters for use in systems where the analogue output signal either interferes with HART data or may become unstable with the presence of the HART signal
•    Variable number of channels
•    Channel labelling
Whatever the application, MTL have, or can design, an integrated solution to allow simple, flexible and space effective connection to your control system. Installations worldwide show that users everywhere recognise the quality and reliability of MTL Integrated SolutionsThe range of integrated options is too extensive to list. Please contact your local MTL representative for full details.

Product Code Description Downloads

intrinsically safe logo Symbol denotes that the equipment is suitable for use in hazardous area applications.
fsm logo Symbol denotes that the product has been assessed for functional safety applications

  HART Custom Solutions Datasheet
