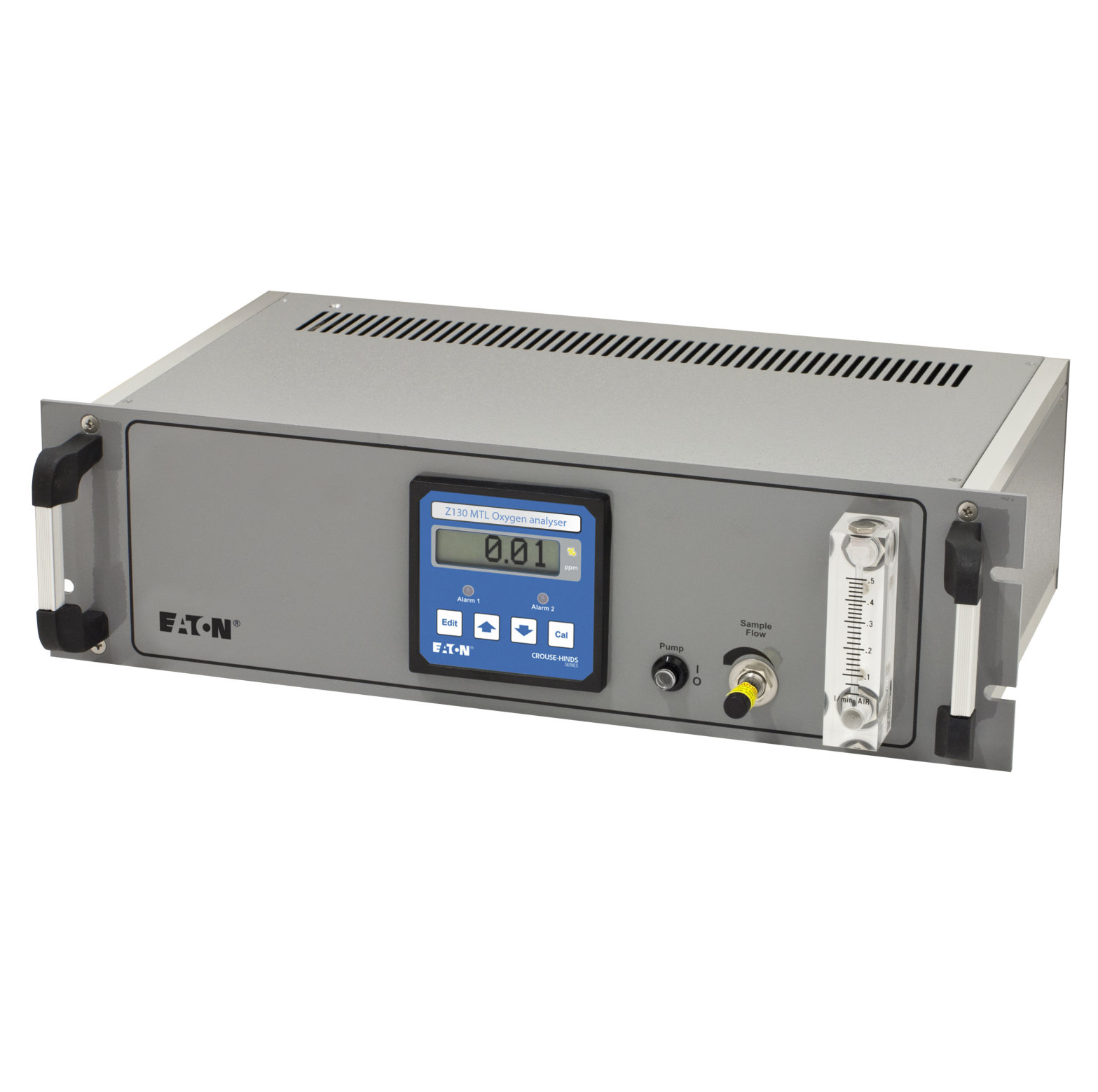

Z130 - Rapid Response Zirconia Oxygen Analyzer (Rack Mount)

  • Measures from 100% to less than 1ppm
  • Rapid response time of less than 5s for 90% change
  • Fully auto ranging
  • Programmable alarms and analogue output

The Z130 rapid response zirconia oxygen analyzer is fully auto ranging from percentage levels to a fractions of parts per million (ppm) in clean gases. Packaged on a 19" rack mounting enclosure, it uses a long life zirconia oxygen sensor to provide accurate measurement with minimal interference from other gases. The unique cell and heater design gives very fast warm-up times, rapid response times of less than 5s for 90% change. A wide choice of sampling options is provided to produce virtually 'custom-built' systems.

A large multi-digit auto-ranging LCD is used to display measured concentrations and the user adjustable parameters in configuration mode.

Two alarm channels each provide one set of volt-free changeover contacts. They can be user- configured to any concentration within the span of the instrument, as well as function (high, low or off) and hysteresis. A choice of two analogue outputs is provided, 0 to 5V or 4 to 20mA, each with several pre-set ranges.

The standard sampling system is a simple needle valve and flow meter. Standard options provide alternatives to cover a wide variety of applications. We also supply a range of sample conditioning accessories to cater for most sample sources.

Contact our technical staff for information about our zirconia technology and range of oxygen analysers.

For Product certificates <click here>

Product Code Description Downloads

intrinsically safe logo Symbol denotes that the equipment is suitable for use in hazardous area applications.
fsm logo Symbol denotes that the product has been assessed for functional safety applications

Z130  Z130 Datasheet  Manual
