Serial I/O interface

Please note that this product has been discontinued. The information contained on this page is for reference use only.

For more information on migrating or equivalent product options click here
For more information on our current products click here

Our wireless serial I/O interfaces provide an easy way to connect sensors, transducers and switches into a wireless communication system. Operating in point to point exception reporting or MODBUS RTU modes, this range of products is suitable for projects that require 0-20mA, 4-20mA, 0-10V, digital and pulsed I/O. Devices can convert between mA and voltage to interface many different sensor types into a single network.  When deployed with the WLN-2000, a complete MODBUS solution for I/O with third party devices is realized to reliably and securely transport data over a distance to a control room from several remote site locations. In a simpler form, digital and analogue data can be communicated over a distance of several miles / kilometers available as  user-defined outputs. Combinations available include:

  • SIO-110DX - MODBUS Serial I/O,  16 digital channels with RS232/485 interface.

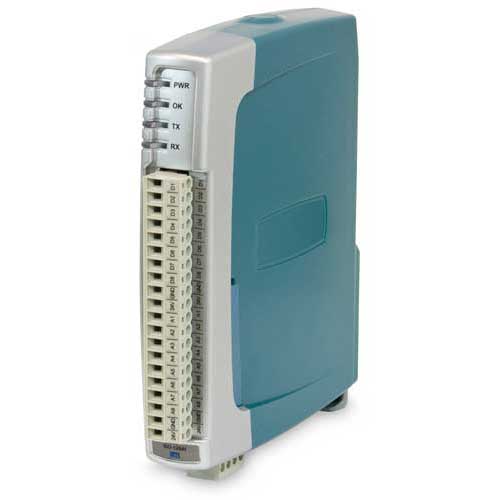

  • SIO-120AI - MODBUS Serial I/O, 8 digital I/O with upto 8 AI and RS232/485 interface
  • SIO-130AO - MODBUS Serial I/O, 8 digital I/O with upto 8AO and RS232/485 interface
Product Code Description Downloads

intrinsically safe logo Symbol denotes that the equipment is suitable for use in hazardous area applications.
fsm logo Symbol denotes that the product has been assessed for functional safety applications

  Configuration Software for SIO interface
SIO-110xx  MODBUS Serial I/O,  digital and analogue channels,  RS232/485 interfaces Datasheet  Manual  File
