MTL8000 Module Carriers and Cables

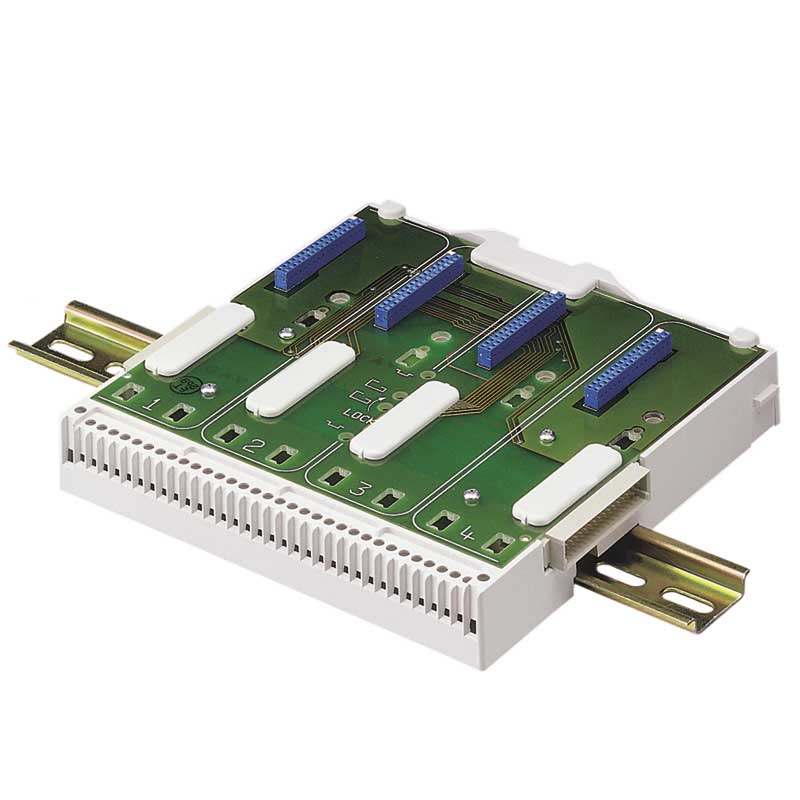

Carriers are the building blocks on which the MTL8000 system is assembled. They distribute the basic power supply services to the modules, and provide the communications route between the Bus Interface Module (BIM) or Controller and the I/O modules. Most carriers can be mounted on DIN rail or directly to a flat surface and may be joined end-to-end to extend the size of an installation. Multipin connectors at the end of each carrier carry the system power supply and internal 'Railbus' communications across to the next carrier. All I/O module carriers have their own independent grounding busbar, with screw terminals, to terminate the screens/shields of field-wiring cables. At each end of the bar there is a separate terminal to enable it to be linked to other carriers, or to the system ground, as required.

For product certificates <click here>

Product Code Description Downloads

intrinsically safe logo Symbol denotes that the equipment is suitable for use in hazardous area applications.
fsm logo Symbol denotes that the product has been assessed for functional safety applications

8011-CC-35   IS carrier extender cable, 0.35m Datasheet
8012-CC-85   IS carrier extender cable, 0.85m Datasheet
8013-CC-12   IS carrier extender cable, 1.2m Datasheet
8016-CC-35   IS power extension cable, 0.35m Datasheet
8017-CC-85   IS power extension cable, 0.85m Datasheet
8018-CC-12   IS power extension cable, 1.2m Datasheet
8030-CE-RH   Carrier Extender (right hand) Datasheet
8031-CE-LH   Carrier Extender (left hand) Datasheet
8032-CC-35   IS carrier extension cable set, 0.35m Datasheet
8033-CC-85   IS carrier extension cable set, 0.85m Datasheet
8034-CC-12   IS carrier extension cable set, 1.2m Datasheet
8723-CA-RB   Railbus Isolator carrier Datasheet
8724-CA-PS   IS module power supply carrier Datasheet
2/1 Carriers and Cables
8720-CA-04   IS 4-module carrier (32-slot addressing) Datasheet
8727-CA-08   IS 8-module carrier (32-slot addressing) Datasheet
8729-CA-08   IS 8-module carrier (64-slot addressing) Datasheet
2/2 Carriers and Cables
8001-CC-35  Carrier extender cable 0.35m Datasheet
8002-CC-85  Carrier extender cable 0.85m Datasheet
8003-CC-12  Carrier extender cable 1.2m Datasheet
8020-CE-RH  Carrier Extender (right hand) Datasheet
8021-CE-LH  Carrier Extender (left hand) Datasheet
8701-CA-BI  Multi BIM carrier Datasheet
8707-CA-08  8-module carrier (32-slot addressing) Datasheet
8709-CA-08  8-module carrier (64-slot addressing) Datasheet
8710-CA-04  4-module carrier (32-slot addressing) Datasheet
8711-CA-NS  Node services carrier (Modbus) Datasheet
8712-CA-NS  Node services carrier (Profobus) Datasheet
8715-CA-BI  BIM carrier Datasheet
8717-CA-PS  Power supply (8910-PS-DC) carrier Datasheet
8718-CA-NS  Node services carrier (NSM) Datasheet
8750-CA-NS  EBIM carrier Datasheet
