MTL8000 1/1 Modules

Please note that this product has been discontinued. The information contained on this page is for reference use only.

For more information on migrating or equivalent product options click here
For more information on our current products click here

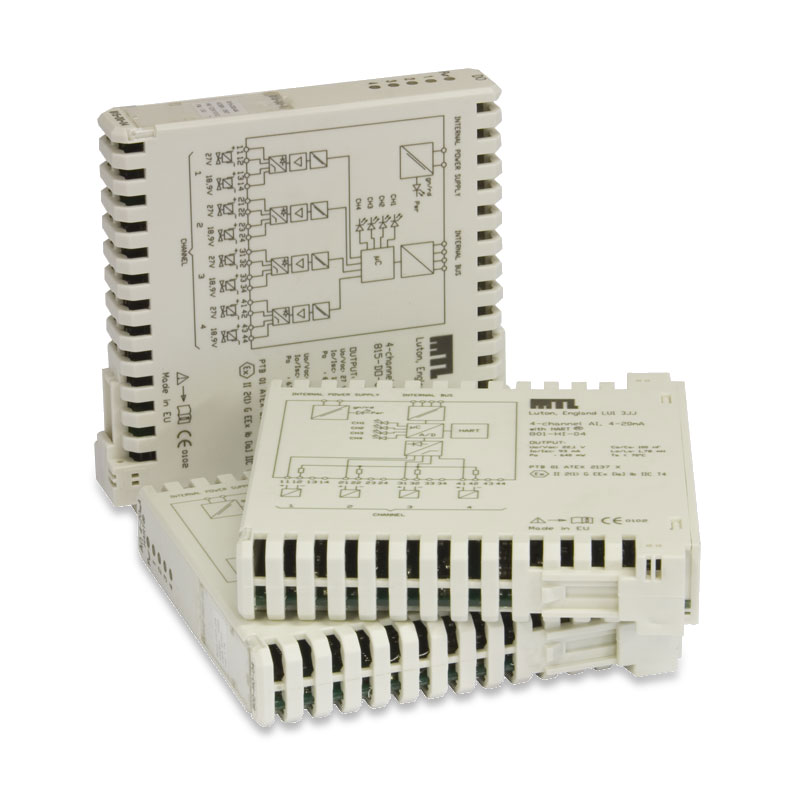

A wide range of I/O modules is offered including AI, AO, DI, DO, temperature input functions and pulse frequency. Each module handles 4 I/O channels (DI: 8 channels) in a slim, 20 mm wide package. The DI module is additionally software-configurable to operate with a combination of NAMUR switch inputs and ultra low-power solenoid outputs. The temperature input module can accept inputs from thermocouples or RTD sensors. A mechanical keying system ensures that modules cannot be replaced into wrong slots on the carrier during maintenance work.

For product certificates <click here>

Product Code Description Downloads

intrinsically safe logo Symbol denotes that the equipment is suitable for use in hazardous area applications.
fsm logo Symbol denotes that the product has been assessed for functional safety applications

Analogue Input
801-HI-04  4-channel, 4-20mA with HART Datasheet
803-AI-04  4-channel, 4-20mA Datasheet
808-HI-04  4-channel, 0/4-20mA with HART, current sinking Datasheet
Analogue Output
802-HO-04  4-channel, 4-20mA with HART Datasheet
804-AO-04  4-channel, 4-20mA, isolated Datasheet
Digital Input/Output
818-DX-08  8-channel, DI/DO Datasheet
Digital Output
815-DO-04  4-channel, solenoid driver Datasheet
Pulse/Frequency Input
823-PI-02  2-channel, pulse/frequency input Datasheet
Temperature Input
805-TI-04   4-channel, THC & RTD Datasheet
