K522 - Thermal Conductivity (TCD) Gas Sensor for Hydrogen (H2), Helium (He), Argon(Ar) applications

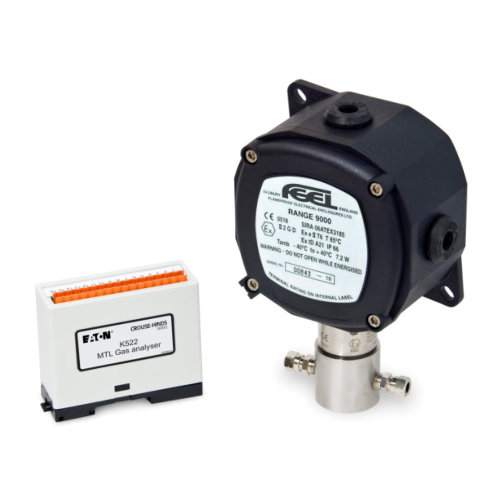

The K522 OEM analyser is a DIN rail mounted instrument consisting of an electronics module and a remote flame proof Katharometer sensor. To complete the measurement system a suitable sampling system, gassing cap, Junction box and cable are required.  The K522 is suitable for measuring Hydrogen, Helium, Nitrogen or Argon in binary or pseudo-binary gas mixtures.

  • Proven TCD technology from gas analyser experts
  • Non-depleting, long life sensor
  • Temperature compensated
  • Atex certified remote sensor

Specification:

  • Measure Hydrogen (H2), Helium (He), Argon (Ar) and other gases.
  • Range 0 to 10% or 0 to 100% depending on gas type
  • Remote ATEX certified sensor
  • RS 232 and 4 to 20 mA outputs
  • Lab view based interface software
  • 24 V dc supply
  • Temperature compensated 0 to +55°C


Application:

  • Gas mixing
  • Hydrogen Generators
  • Helium recovery systems
  • Insulated glass (IG) filling

For Product certificates <click here>

Product Code Description Downloads

intrinsically safe logo Symbol denotes that the equipment is suitable for use in hazardous area applications.
fsm logo Symbol denotes that the product has been assessed for functional safety applications

K522  K522 Thermal Conductivity (TCD) Gas Sensor File
