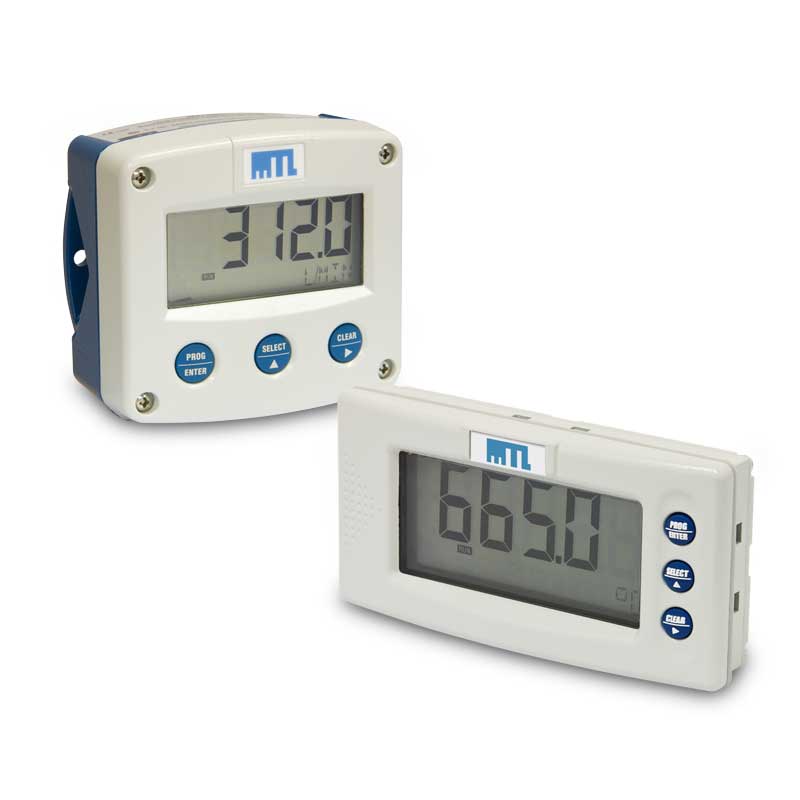

MTL660 Series
The 660 Series indicators are loop powered units and the low voltage drop across their input terminals allows them to be installed in almost any 2-wire, 4-20mA loop.
Large liquid crystal displays make the process variables easily visible at a distance. Process units are configured into the display area. Instant readout of percentage or loop current is available at the push of a button.
Field mounting units are housed in a rugged aluminium IP67, NEMA 4X case. ABS and GRP options are available for highly corrosive atmospheres.
| MTL661 |
Field mounting Aluminium enclosure |
|
|
| MTL661B | Field mounting Aluminium enclosure, with backlight | ||
| MTL661-ABS | Field mounting ABS enclosure | ||
| MTL662 |
Panel mounting Aluminium enclosure | ||
| MTL662B | Panel mounting Aluminium enclosure, with backlight | ||
| MTL663 | Field mounting GRP enlcosure | ||
| MTL665 | Panel mounting Aluminium DIN enclosure | ||
| MTL665B | Panel mounting Aluminium DIN enclosure, with backlight |
Product Literature
| Product Code | Description | Downloads |
|---|---|---|
MTL660 |
MTL660 series - all models | Datasheet Manual |
Symbol denotes that the equipment is suitable for use in hazardous area applications.
